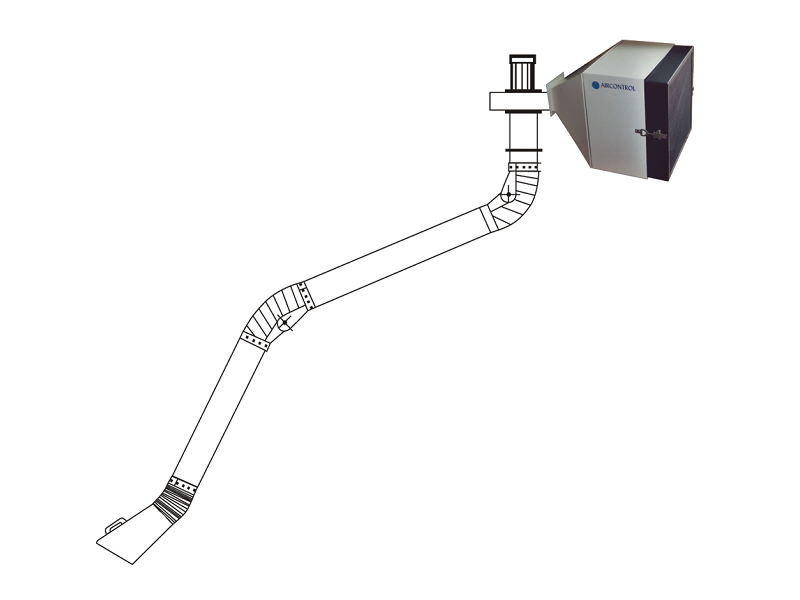

ADP Static wall-mounted air cleaner

Wall-mounted static air cleaner suitable for the extraction and filtration of welding fumes, odours, gases, vapours, etc., made up of:
– Complete BERZ 300/16 extraction arm
– Structure and casing made for wall mounting, built from painted steel and connected to a ventilation fan
– Static filter section made with partially regenerable fabric pre-screeners and an activated carbon filter cartridge
– Centrifugal fan directly coupled to an electric motor

1) – BERZ 300/16 articulated extraction arm
2) – Wall mounting for extraction arm
3) – Directly coupled single suction centrifugal electric fan
4) – Connection between fan intake and cleaning filter
5) – Cleaning filter

ADP version S
Is suitable for the extraction and filtration of low concentration fumes and gases that develop during welding. The filter section is equipped with partially regenerable, high efficiency, accumulating pre-screeners, and an adsorbent activated carbon cartridge.
Not suitable for ATEX situations

ADP version V
Is suitable for the extraction and filtration of low concentration gaseous substances. The filter section is equipped with high efficiency pre-screeners, a high capacity adsorbent activated carbon cartridge and a higher capacity than version S.
ATEX certified components available on request
