Self-cleaning trolley-mounted air cleaner with cartridge filters, suitable for the filtration of dry dusts of medium and fine granulometary, used (not exclusively) in the pharmaceutical, food, ceramic and mechanical sectors.
The air cleaner is equipped with a self-cleaning system for the filtration cells which uses jets of compressed air, controlled and regulated by the appropriate timer placed on the electrical control panel.

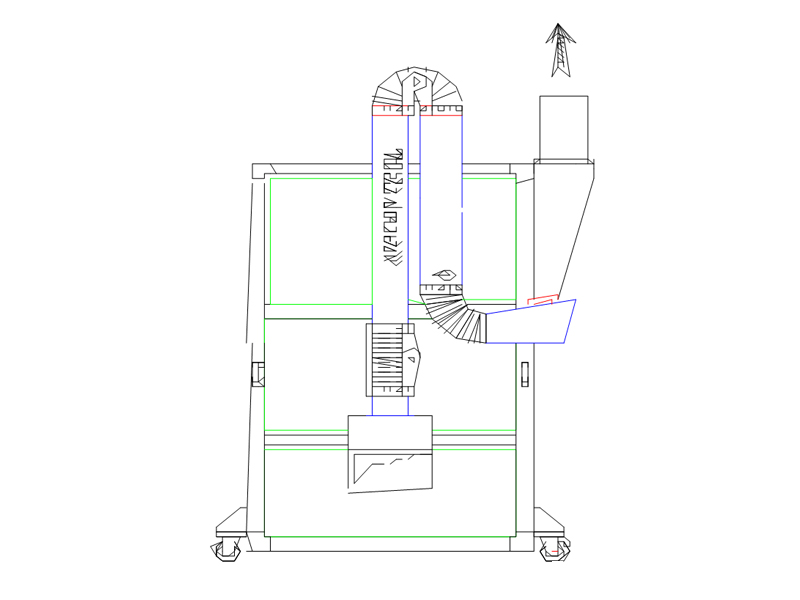

The air cleaner consists of a structure and supporting casing which is made from painted steel and has castors, a filtration section with cartridges, dust collection tray, a ventilation section containing the high efficiency centrifugal fan which is directly coupled to an electric motor, an electrical control panel which controls the electric motor and electromagnetic valves, and, on certain models, a BERZD 300/16 extraction arm.
ATEX certified components on request
Spare parts / Acessories
|AIRDC SIL||EXPULSION SILENCER FOR AIRDC FILTERS||Login|
|CODICE||Characteristics||Price||Power||Voltage||Airflow||db (A)||Dimensions||Filtering surface|
|AIRDC 4||TROLLEY-MOUNTED AIR CLEANER (APPROX 4000 M³/HR) WITHOUT EXTRACTION ARM||Login||5,5||220-380 Volt 3F||4.000||75 - 69||1200x1200x2150 H||40|
|AIRDC 4/2B||TROLLEY-MOUNTED AIR CLEANER (APPROX 4000 M³/HR) WITH TWO BERZD 300/16 EXTRACTION ARMS||Login||5,5||220-380 Volt 3F||4.000||75 - 69||1200x1200x2150 H||40|
|AIRDC 4/1B||TROLLEY-MOUNTED AIR CLEANER (APPROX 3000 M³/HR) WITH BERZD 300/16 EXTRACTION ARM||Login||5,5||220-380 Volt 3F||3.000||75 - 69||1200x1200x2150 H||40|
|AIRDC 2||TROLLEY-MOUNTED AIR CLEANER (APPROX 2000 M³/HR) WITHOUT EXTRACTION ARM||Login||1,5||220-380 Volt 3F||2.000||70 - 64||1000x1000x1800 H||20|
|AIRDC 2/1B||TROLLEY-MOUNTED AIR CLEANER (APPROX 2000 M³/HR) WITH BERZD 300/16||Login||1,5||220-380 Volt 3F||2.000||70 - 64||1000x1000x1800 H||20|
