Self-cleaning bag filter with discharge into sacks ornella series

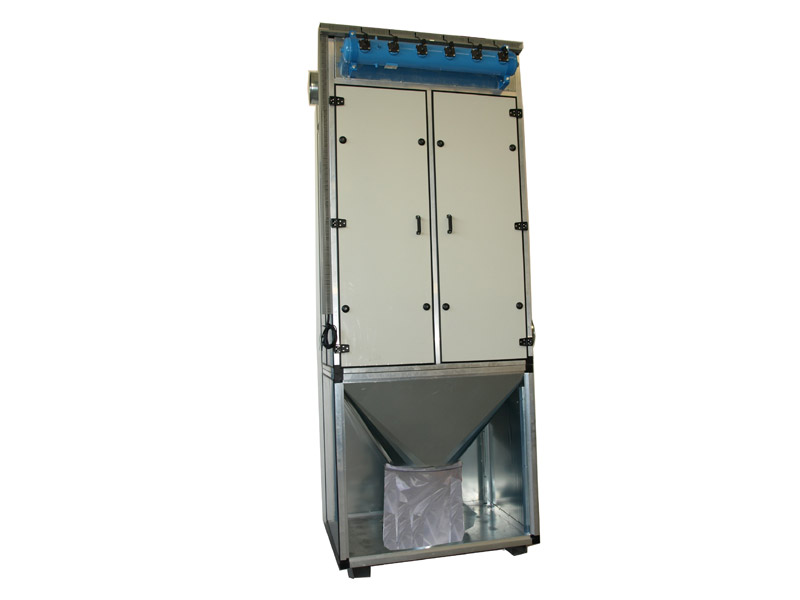

self-cleaning bag filter with discharge into sacks ORNELLA series

self-cleaning bag filter with discharge into sacks ORNELLA series

Pulse jet bag filter, complete with (including on ATEX 22 D certified version):
• automatic counter-current compressed air self-cleaning using Venturi tubes
• external structure made from insulated panels with aluminium edges
• needle felt ployester filtration bags
• cycle programmer to control the regularity of the self cleaning
• dust discharge sacks.

All verions of the filters can be fitted with a plenum chamber on request.

Spare parts / Acessories

CODICECharacteristics
STAFire-safety sprinkler system for the filter, with manual command valve. 5% surcharge on list price.

Models

CODICEPricePrice ATEX 22 DAirflowDimensionsSurface
30 (ORNELLA)  Login  Login3.500800 x 1600 x 540030
60 (ORNELLA)  Login  Login6.0001600 x 1600 x 540060
80 (ORNELLA)  Login  Login8.0002000 x 1600 x 540080
100 (ORNELLA)  Login  Login10.0002200 x 1600 x 5400100
120 (ORNELLA)  Login  Login12.0002400 x 1600 x 5400120
160 (ORNELLA)  Login  Login16.0002600 x 1600 x 5400160
